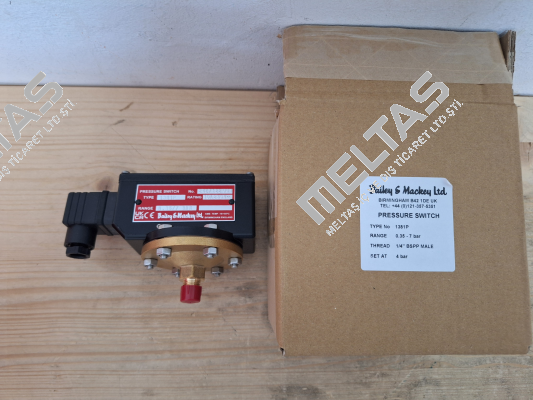

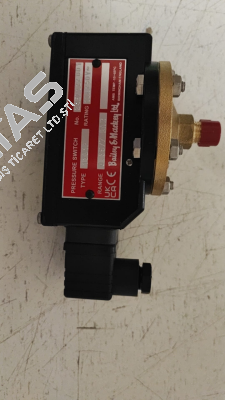

| BRAND | Bailey & Mackey |
| Product | 09A3474005/ 1381P |
| Internal code | 4967124 |
| Weight | 0.977 |
| Technical specification | Basınç Anahtarı Menzil: 0.35 ila 7 bar Proses Bağlantısı: 1/4” BSP erkek, paralel C/W Gaz Kelebeği Vidası Islak parçalar: berilyum bakır diyaframlı pirinç bağlantı Mühür: Viton Elektrik Bağlantısı: 4-pin fiş ve soket IP65 korumalı anahtar muhafazası girişi SPDT mikro anahtar dereceli 10A @250V ac CE işaretli |
Discover the superior quality and performance of the Bailey & Mackey 09A3474005/ 1381P with Meltaş İç ve Dış Tic. Ltd. Şti. in Turkey . Whether you are looking for reliability or efficiency, this product meets all your industrial needs.
The 09A3474005/ 1381P is designed to provide optimal performance and durability in various applications. Known for its high-quality construction and innovative features, it is a preferred choice for professionals.
Key Features of 09A3474005/ 1381P :
At Meltaş İç ve Dış Tic. Ltd. Şti. , we offer the 09A3474005/ 1381P at competitive prices and with the fastest delivery times across Turkey . Our expert team is ready to assist you with all your inquiries and provide tailored solutions to meet your specific needs.
Why Choose Meltaş İç ve Dış Tic. Ltd. Şti. ?
Get Your Quote Today! Ready to enhance your operations with the 09A3474005/ 1381P ? Contact us now for a personalized quote. Fill out the form below or send us an email with your inquiry. Let us help you make a cost-effective, quality-driven choice for your business.
Important Notice: While we supply Bailey & Mackey products, Meltaş İç ve Dış Tic. Ltd. Şti. is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
DIFFERENTIAL PRESSURE SWITCH range 2-40 PSI with 1/4" process connections and 1/2" NPT conduit connection with a mounting bracket
Diferansiyel Basınç Anahtarı
Pressure Switch Range: 2to 40 bar (Set at2bar Rising and marked on nameplate) Manual Reset for Rising Pressure Overload protection to 250 bar Process connection: ll2" NPT Male x ll4" NPT Female, Brass with a Beryllium Copper diaphragm Seal: Nitrile 'O' ring. Switch housing ingress protection to IP65. SPDT microswitch, suitable for 250V ac l0A and fitted with a 4K7 ohm resistor and shorting link Electrical entry: Fitted lm cable, 4 core and gland As Drg 1381RQ13 Mounting bracket fitted. CE marked
Type 1392P Visual Setting Differential Pressure Switch Range: 0.2 to 4 bar Process Connection: 1/4” BSP female, parallel
Görsel Ayar Diferansiyel Basınç Şalteri
pressure switch
207 Q (NOT OFFERED REPLACED BY 2381Q)
Pressure Switch 5 A. 250 V. 207 Q, Rated Current: 5Amp, Ac Nominal Voltage:250Volt,Range: 5-160 PSI,P / Reducer Pve-16D , Serial 69153, 1/2 Npt
Range: -1 to BAR
Diferansiyel Basınç Anahtarı Aralığı:
Pressure Switch Range: 1 to 3 bar (Set at 1.4 bar Rising) Process connection: 7/8” BSP Male, 316 Stainless Steel flow through base, with a PTFE/Nitrile bonded diaphragm. Switch Cover Plastic coated
SWITCH,PRESSURE,ATEX,PRESSURE RANGE 3-14 BAR,DELUGE SYSTEM ZONE #1 TO ZONE #8,SERIES 5000,TYPE 5381,NOTIFICATION NUMBER11044079
Seri numarası olarak 1381Q Tip Basınç Anahtarı 9256 {0 {6 Menzil: -1 ila +1 Aşırı yük 28 bar'a kadar korumalı Proses Bağlantısı: 112 “BSP erkek, paralel Islak parçalar: berilyum bakır diyaframlı pirinç bağlantı Mühür: Nitril Anahtar muhafazası girişi lP65 korumalı SPDT mikro anahtar dereceli 10A @250V ac CE işaretli Stok Kodu: 52A23
STLESS STEEL PROTECTION DISC
PTFE FLAT SEALING GASKET
BERYLLIUM COPPER DIAPHRAGM
Pressure range 0,2 - 4bar .
SWITCH ASSEMBLED IN BRACKET
water flow switch, #0380323003, type SPDT, model 1382, rating 15 amp, 250V range 2-40 psi.
REPLACEMENT UNIT FOR PRESSURE SWITCH SERIAL NUMBER 04 86394 003
(Type 14P Pressure Switch Range: 0.4 to 4 bar Process Connection: 1/8” BSP male, taper Wetted parts: brass connection with a beryllium copper diaphragm Seal: Nitrile Electrical Connection: 4-pin plug & socket SPDT microswitch)
SENSOR FOR TRANSMITTER PTSPGG1N00 0, PN100 316L
sensor temp.200°c,7 à 8 bars
Basınç anahtarı
Pressure Switch Range: 0.2 – 4 bar Process Connection: 1/4” BSP male, parallel Wetted parts: brass connection with a beryllium copper diaphragm Seal: PTFE Switch housing ingress protected to IP65 SPDT microswitch rated 10A @ 250V ac CE marked
TYPE 1382 DIFFERENTIAL PRESSURE SWITCH, 0.2TO 4BAR
Basınç Anahtarı
Pressure Switch Range: 0.4 to 4 bar Process Connection: 1/8” BSP male, taper Wetted parts: brass connection with a beryllium copper diaphragm Seal: Nitrile SPDT microswitch
Twin Circuit Pressure Switch Range: 2 – 28 bar Process Connection: ¾ ”NPT male Wetted parts: brass connection with a beryllium copper diaphragm Seal: Nitrile Electrical Entry: 7-pin plug & socket Switch housing ingress protected to IP65 SPDT microswitches rated 5A @ 250V ac C/W push on crimp connectors CE marked
